Description

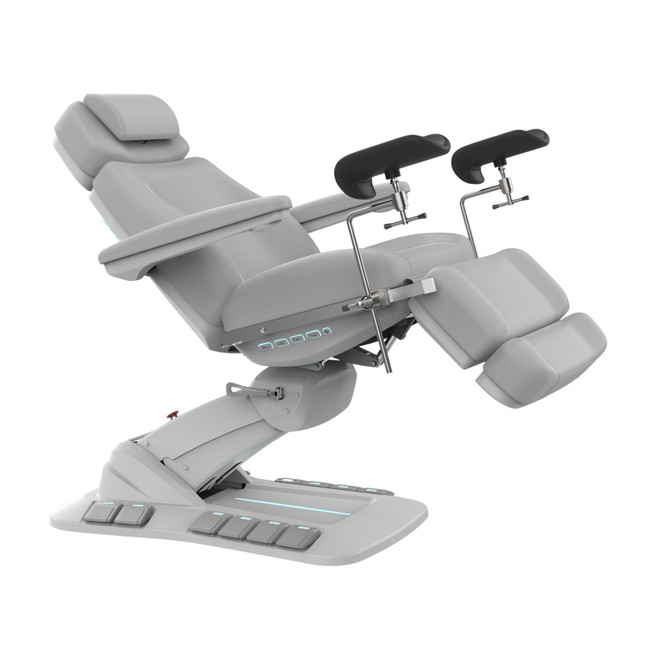

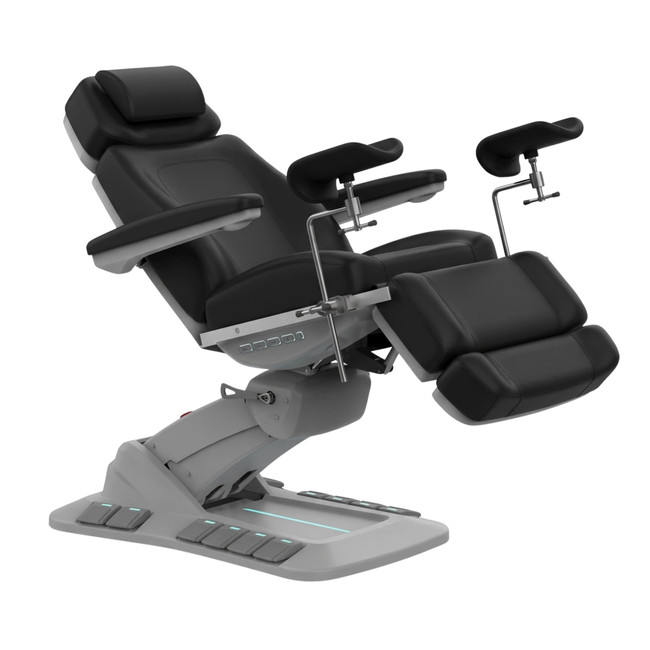

The Spa Luxe 2246EBNS is an electric 4-motor medical treatment chair designed for gynecology, physical therapy, dermatology, podiatry, and medical spa environments. Featuring rail-mounted adjustable stirrups, 240° base rotation, an ADA-compliant low seat height, and an electric 15° Trendelenburg position, this table provides multi-axis positioning for clinical examinations and outpatient procedures.
Specifications & Compliance
-
Primary Clinical Fields: Gynecology, Physical Therapy, Dermatology, Podiatry, Medi-Spa
-
Motorized Controls: 4 Independent Motors (Height, Backrest, Seat Tilt, Footrest)
-
Positioning Angles: 15° Trendelenburg, up to 82° Backrest, up to 20° Seat Tilt
-
Base Swivel: 240° Manual Rotation
-
Control System: Integrated Base Foot Controller with 2 Memory Presets (M1, M2), Auto-Reset (R), & Lock
-
Product Size: L x W x H (ins) - 71 x 33 x 19-33
- Weight Capacity: 440 lbs
-
Unit Weight / Gross Weight: 244 lbs / 269 lbs
-
Regulatory & Tax Compliance: CE, RoHS, FDA-Listed, UL Certified, ADA Compliant (Section 44 Tax Credit eligible)
Multi-Specialty Clinical Applications
-
Gynecology & Pelvic Examinations: Equipped with adjustable stirrups mounted on heavy-duty side accessory rails, an extendable footrest, and an electric 15° head-down Trendelenburg tilt for pelvic and gynecological care.
-
Dermatology & Aesthetic Procedures: Motorized height and backrest adjustments allow precise positioning for facial treatments, dermatologic exams, and cosmetic injections.
-
Physical Therapy & Rehabilitation: Powered 4-motor articulation transitions smoothly from a flat treatment surface to angled, seated clinical positions.
-
Podiatry & Lower Extremity Care: Independent footrest adjustment combined with 240° base swivel provides unrestricted practitioner access during foot and ankle examinations.
Motorized Articulation & Safety Features

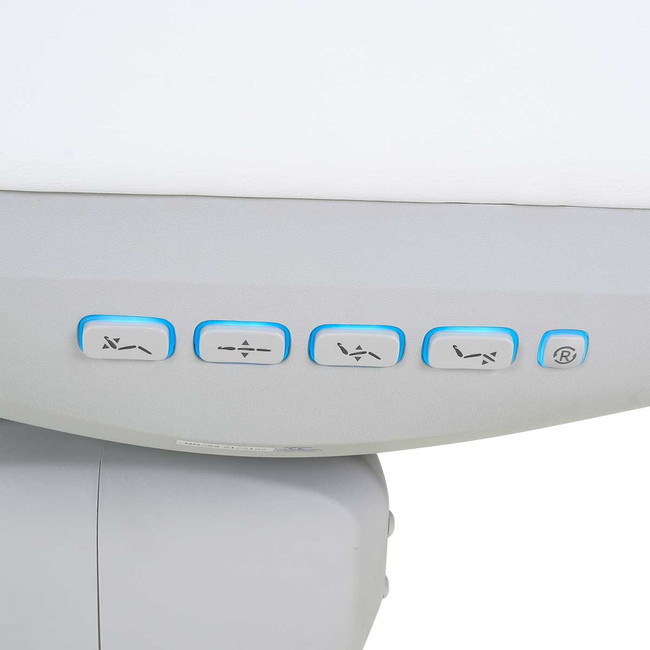

The 2246EBNS utilizes four independent motors to articulate height (19" to 33"), backrest angle (up to 82°), seat tilt angle (up to 20°), and leg rest positioning.
-

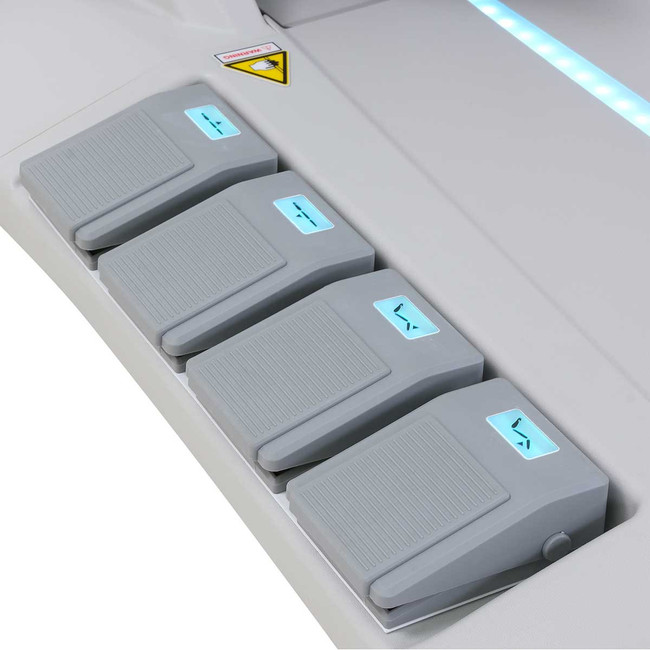

Hands-Free Control Panel: Built-in base pedals allow practitioners to adjust elevation and tilt without breaking hand sanitation boundaries.
-

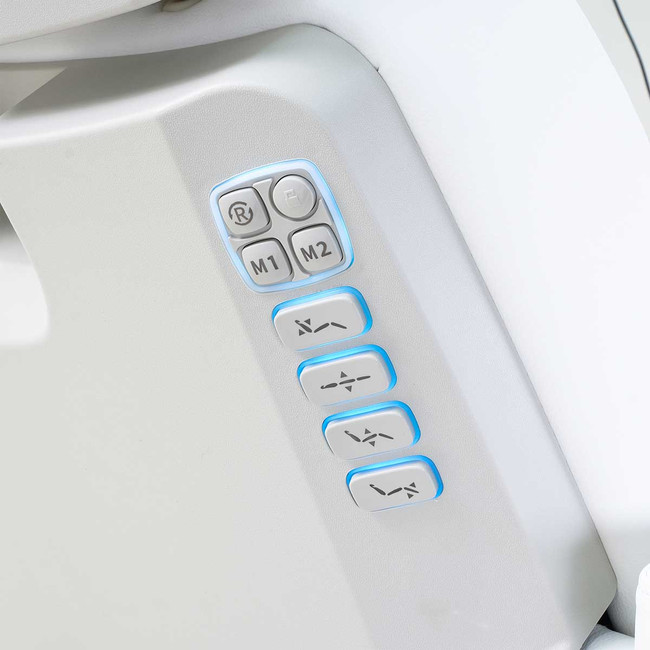

Memory & Lock Storage: Features two program memory buttons (M1, M2) for instant position recall, a single-touch auto-reset button (R), and a locking function to prevent movement during procedures.
-

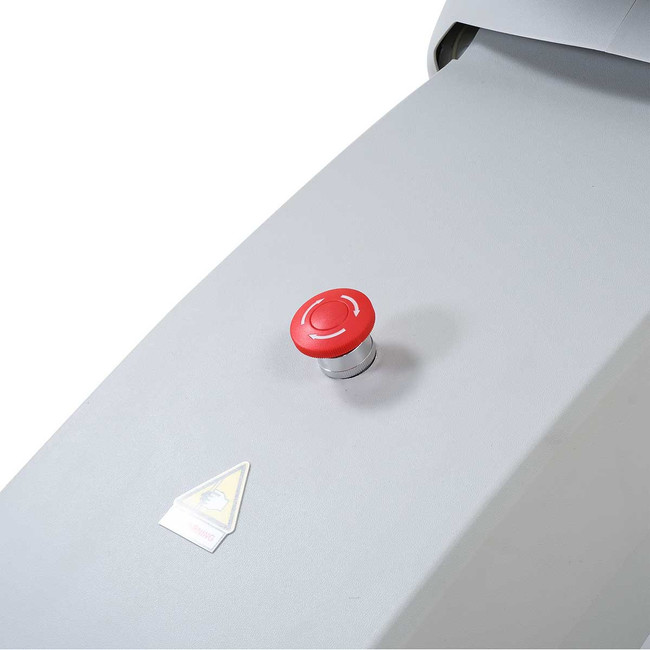

Obstruction Detection & Safety Cut-off: Built-in collision sensors located beneath the chair and behind the backrest automatically halt motor operation if an obstacle is encountered. A dedicated base switch allows immediate emergency power shut-off.
Construction, Ergonomics & Maintenance
The seat, backrest, and armrests feature a multi-layer foam core—combining a high-firmness base support layer with a low-hardness top comfort layer—upholstered in medical-grade microfiber leather. To maintain clinical hygiene standards between patient visits, the cushion assembly is completely detachable to facilitate direct surface sanitization.
Warranty
Warranty: 2 Year Limited Warranty on Motors and Electronics. Note: 3-Year Warranty upgrade covers motors, electronics, and controls only.
During the limited warranty period, if a covered component fails due to normal use, we will replace the component free of charge and provide instructions on how to install it. Due to variations in frequency and intensity of use and cleaning methodology, the upholstery of these products is not covered under warranty. To maximize longevity, we recommend cleaning these products' upholstery with only mild soap and warm water.
